zinja-coder/jadx-ai-mcp

Read The Docs

• Read The Docs is now live: https://jadx-ai-mcp.readthedocs.io/en/latest/

---

🤖 What is JADX-AI-MCP?

JADX-AI-MCP is a plugin for the JADX decompiler that integrates directly with Model Context Protocol (MCP) to provide live reverse engineering support with LLMs like Claude.

Think: "Decompile → Context-Aware Code Review → AI Recommendations" — all in real time.

High Level Sequence Diagram

sequenceDiagram
LLM CLIENT->>JADX MCP SERVER: INVOKE MCP TOOL
JADX MCP SERVER->>JADX AI MCP PLUGIN: INVOKE HTTP REQUEST
JADX AI MCP PLUGIN->>REQUEST HANDLERS: INVOKE HTTP REQUEST HANDLER
REQUEST HANDLERS->>JADX GUI: PERFORM ACTION/GATHER DATA
JADX GUI->>REQUEST HANDLERS: ACTION PERFORMED/DATA GATHERED
REQUEST HANDLERS->>JADX AI MCP PLUGIN: CRAFT HTTP RESPONSE
JADX AI MCP PLUGIN->>JADX MCP SERVER:HTTP RESPONSE
JADX MCP SERVER->>LLM CLIENT: MCP TOOL RESULT

Watch the demos!

• Perform quick analysis

https://github.com/user-attachments/assets/b65c3041-fde3-4803-8d99-45ca77dbe30a

• Quickly find vulnerabilities

https://github.com/user-attachments/assets/c184afae-3713-4bc0-a1d0-546c1f4eb57f

• Multiple AI Agents Support

https://github.com/user-attachments/assets/6342ea0f-fa8f-44e6-9b3a-4ceb8919a5b0

• Run with your favorite LLM Client

https://github.com/user-attachments/assets/b4a6b280-5aa9-4e76-ac72-a0abec73b809

• Analyze The APK Resources

https://github.com/user-attachments/assets/f42d8072-0e3e-4f03-93ea-121af4e66eb1

• Your AI Assistant during debugging of APK using JADX

https://github.com/user-attachments/assets/2b0bd9b1-95c1-4f32-9b0c-38b864dd6aec

It is combination of two tools: 1. JADX-AI-MCP 2. JADX MCP SERVER

🤖 What is JADX-MCP-SERVER?

JADX MCP Server is a standalone Python server that interacts with a JADX-AI-MCP plugin (see: jadx-ai-mcp) via MCP (Model Context Protocol). It lets LLMs communicate with the decompiled Android app context live.

---

Other projects in Zin MCP Suite

• APKTool-MCP-Server
• JADX-MCP-Server
• ZIN-MCP-Client

Current MCP Tools

The following MCP tools are available:

• fetch_current_class() — Get the class name and full source of selected class
• get_selected_text() — Get currently selected text
• get_all_classes() — List all classes in the project
• get_class_source() — Get full source of a given class
• get_method_by_name() — Fetch a method's source
• search_method_by_name() — Search method across classes
• search_classes_by_keyword() — Search for classes whose source code contains a specific keyword (supports pagination)
• get_methods_of_class() — List methods in a class
• get_fields_of_class() — List fields in a class
• get_smali_of_class() — Fetch smali of class
• get_main_activity_class() — Fetch main activity from jadx mentioned in AndroidManifest.xml file.
• get_main_application_classes_code() — Fetch all the main application classes' code based on the package name defined in the AndroidManifest.xml.
• get_main_application_classes_names() — Fetch all the main application classes' names based on the package name defined in the AndroidManifest.xml.
• get_android_manifest() — Retrieve and return the AndroidManifest.xml content.
• get_manifest_component - Retrieve specific manifest component instead of whole manifest file
• get_strings() : Fetches the strings.xml file
• get_all_resource_file_names() : Retrieve all resource files names that exists in application
• get_resource_file() : Retrieve resource file content
• rename_class() : Renames the class name
• rename_method() : Renames the method
• rename_field() : Renames the field
• rename_package() : Renames whole package
• rename_variable() : Renames the variable within a method
• add_comment() : Adds a comment to a class, method, field, or a single code line (line=, the 1-based line number of the decompiled source), shown in JADX-GUI and saved with the project (re-commenting the same target updates it, an empty comment removes it)
• list_comments() : Lists the comments stored in the project, optionally filtered to one class
• debug_get_stack_frames() : Get the stack frames from jadx debugger
• debug_get_threads() : Get the insights of threads from jadx debugger
• debug_get_variables() : Get the variables from jadx debugger
• xrefs_to_class() : Find all references to a class (returns method-level and class-level references, supports pagination)
• xrefs_to_method() : Find all references to a method (includes override-related methods, supports pagination)
• xrefs_to_field() : Find all references to a field (returns methods that access the field, supports pagination)

---

🗒️ Sample Prompts

🔍 Basic Code Understanding

"Explain what this class does in one paragraph."

"Summarize the responsibilities of this method."

"Is there any obfuscation in this class?"

"List all Android permissions this class might require."

🛡️ Vulnerability Detection

"Are there any insecure API usages in this method?"

"Check this class for hardcoded secrets or credentials."

"Does this method sanitize user input before using it?"

"What security vulnerabilities might be introduced by this code?"

🛠️ Reverse Engineering Helpers

"Deobfuscate and rename the classes and methods to something readable."

"Can you infer the original purpose of this smali method?"

"What libraries or SDKs does this class appear to be part of?"

"Tell me which classes contains code related to 'encryption'?"

📦 Static Analysis

"List all network-related API calls in this class."

"Identify file I/O operations and their potential risks."

"Does this method leak device info or PII?"

🤖 AI Code Modification

"Refactor this method to improve readability."

"Add comments to this code explaining each step."

"Rewrite this Java method in Python for analysis."

📄 Documentation & Metadata

"Generate Javadoc-style comments for all methods."

"What package or app component does this class likely belong to?"

"Can you identify the Android component type (Activity, Service, etc.)?"

🐞 Debugger Assistant

   "Fetch stack frames, varirables and threads from debugger and provide summary"

"Based the stack frames from debugger, explain the execution flow of the application"
"Based on the state of variables, is there security threat?"

---

🛠️ Getting Started

1. Download from Releases: https://github.com/zinja-coder/jadx-ai-mcp/releases

[!NOTE]

> Download both jadx-ai-mcp-.jar and jadx-mcp-server-.zip files.

# 0. Download the jadx-ai-mcp-.jar and jadx-mcp-server-.zip
https://github.com/zinja-coder/jadx-ai-mcp/releases
1.
unzip jadx-ai-mcp-.zip
├jadx-mcp-server/
  ├── jadx_mcp.py
  ├── requirements.txt
  ├── README.md
  ├── LICENSE
├jadx-ai-mcp-.jar
2. Install the plugin
For this you can follow two approaches:
1. One liner - execute below command in your shell
jadx plugins --install "github:zinja-coder:jadx-ai-mcp"
The above one line code will install the latest version of the plugin directly into the jadx, no need to download the jadx-ai-mcp's .jar file.

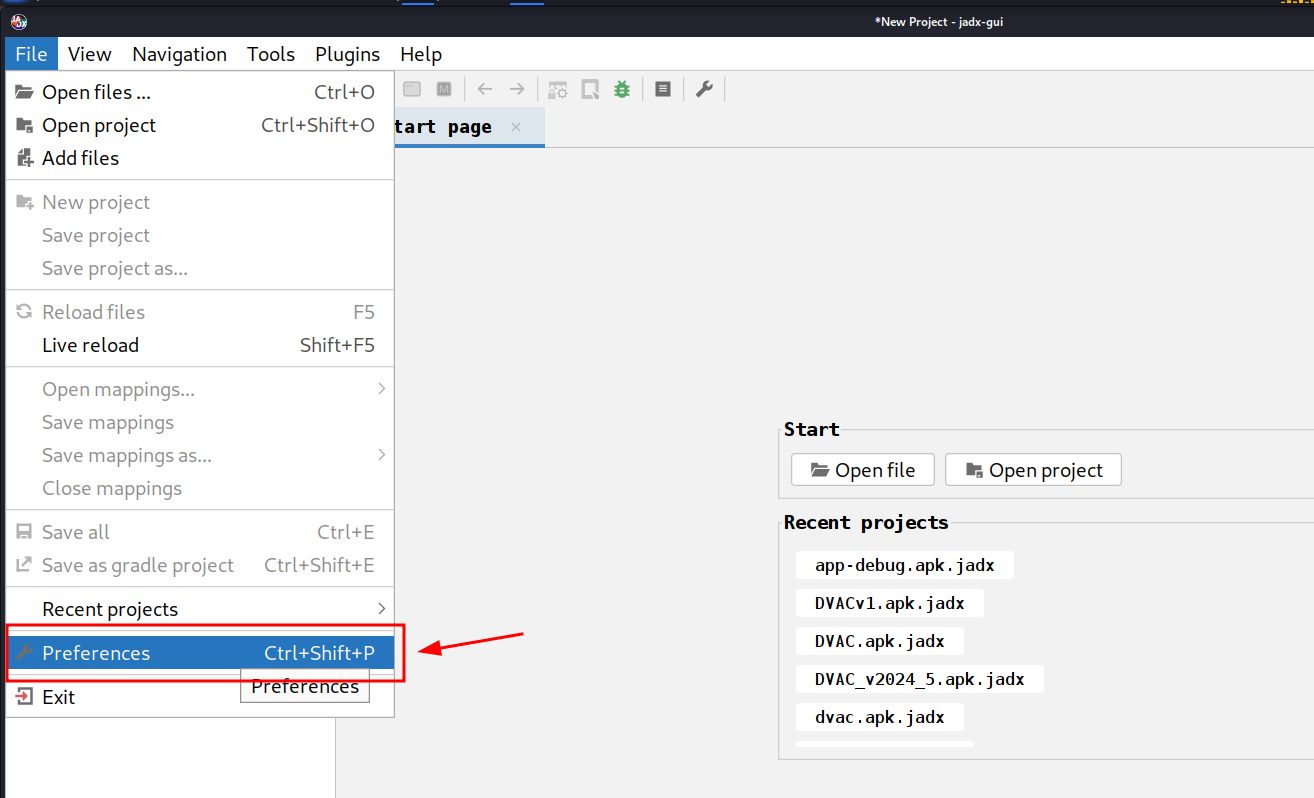

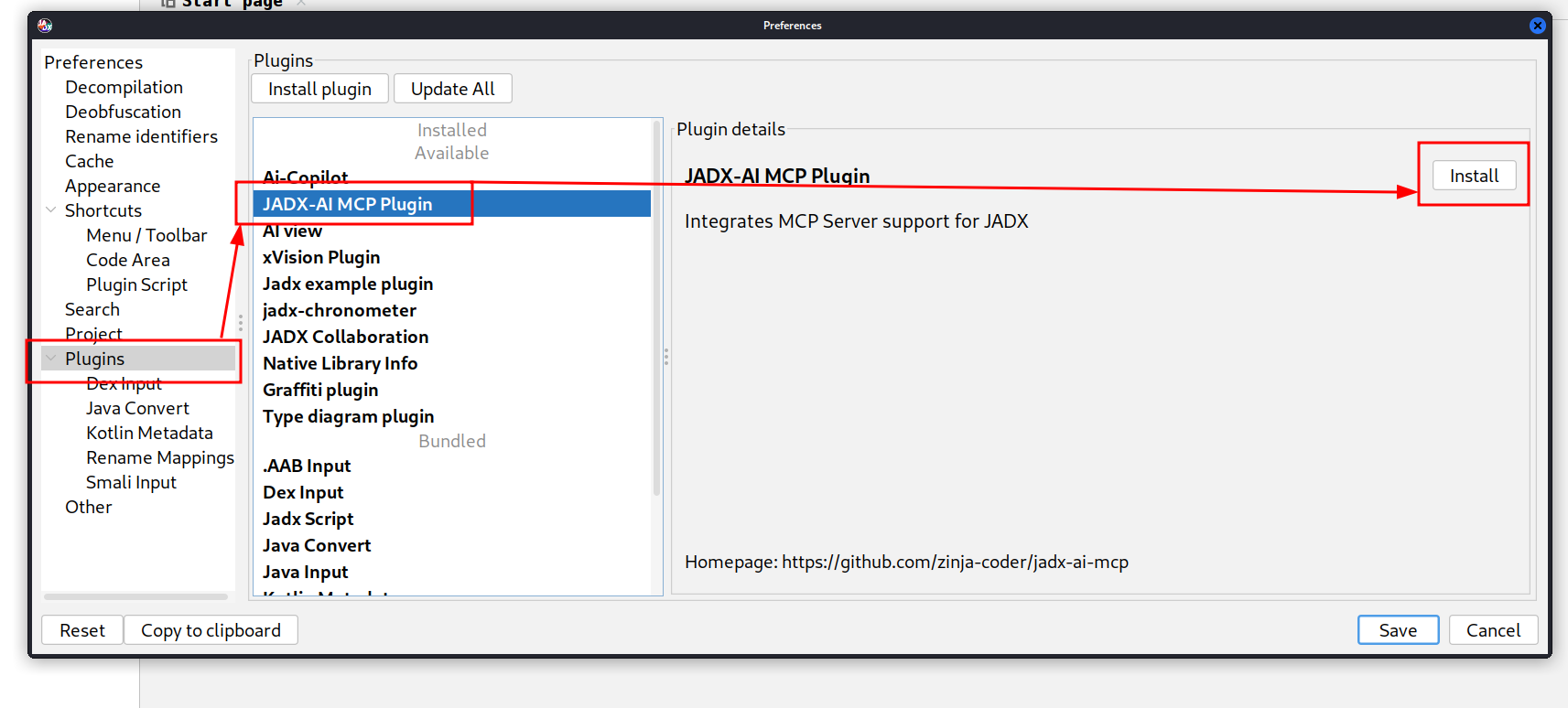

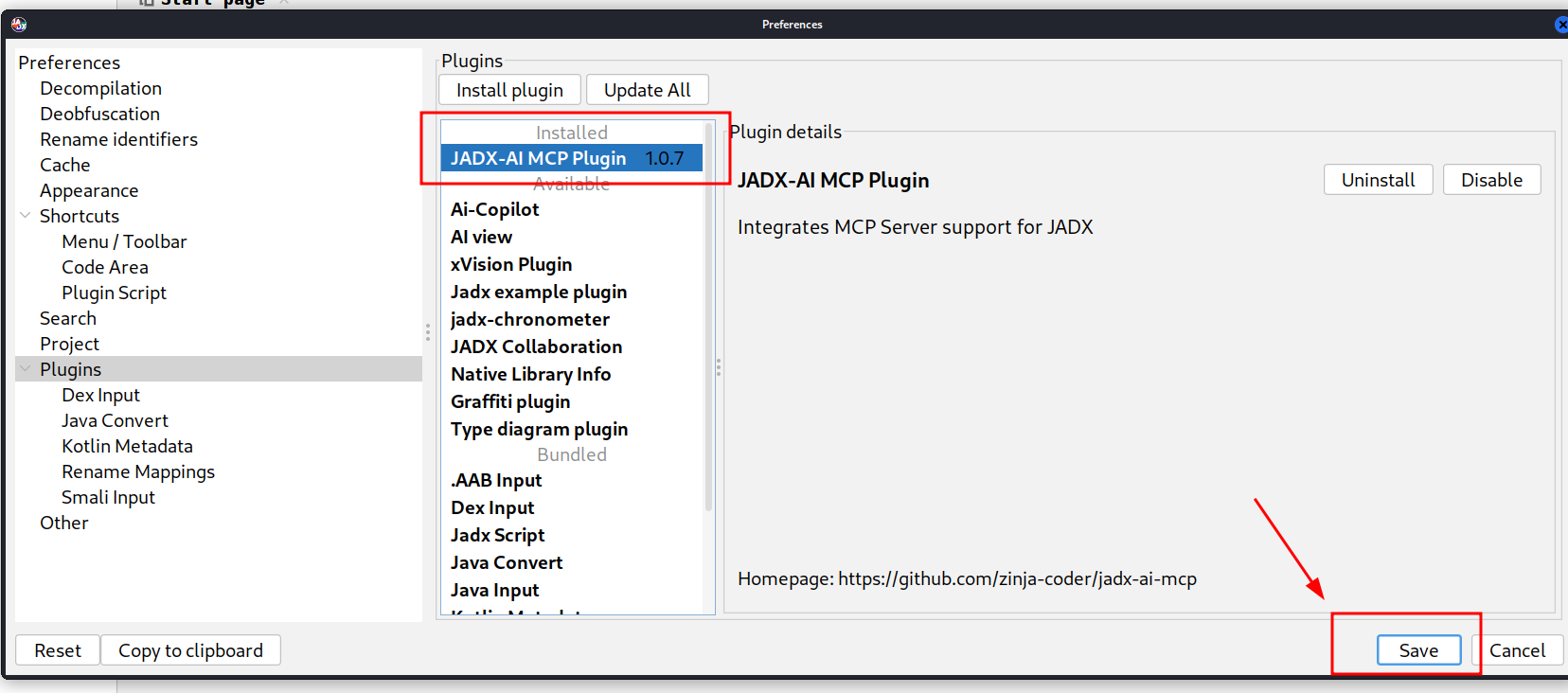

2. Or you can use JADX-GUI to install it by following images as shown below:

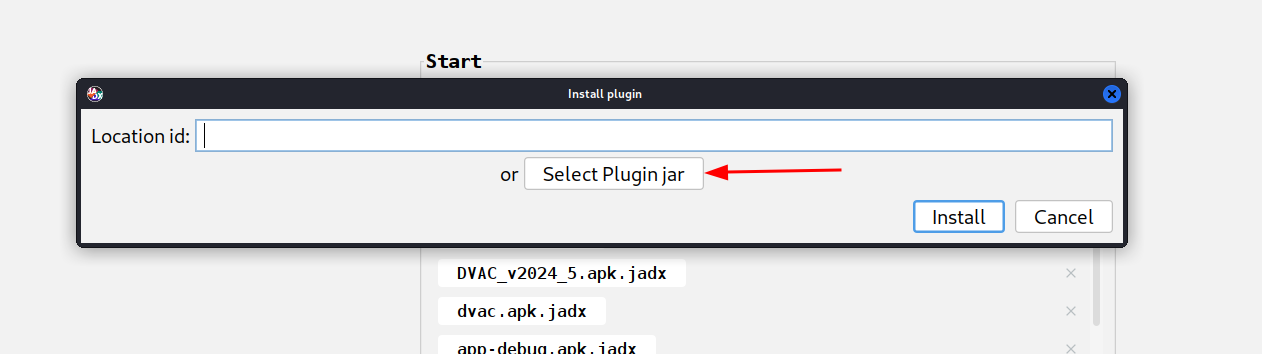

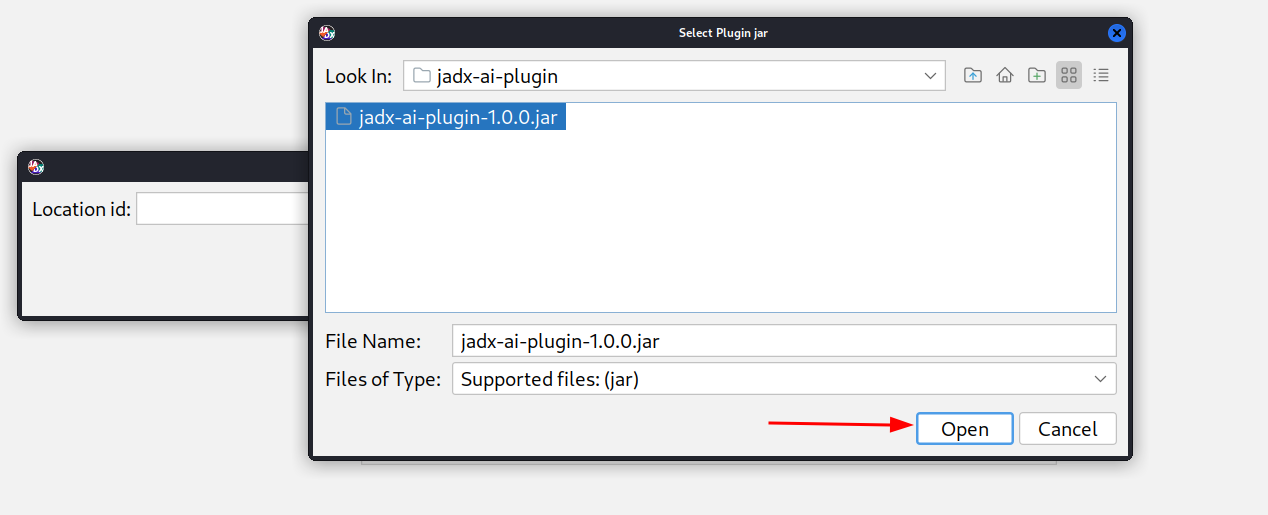

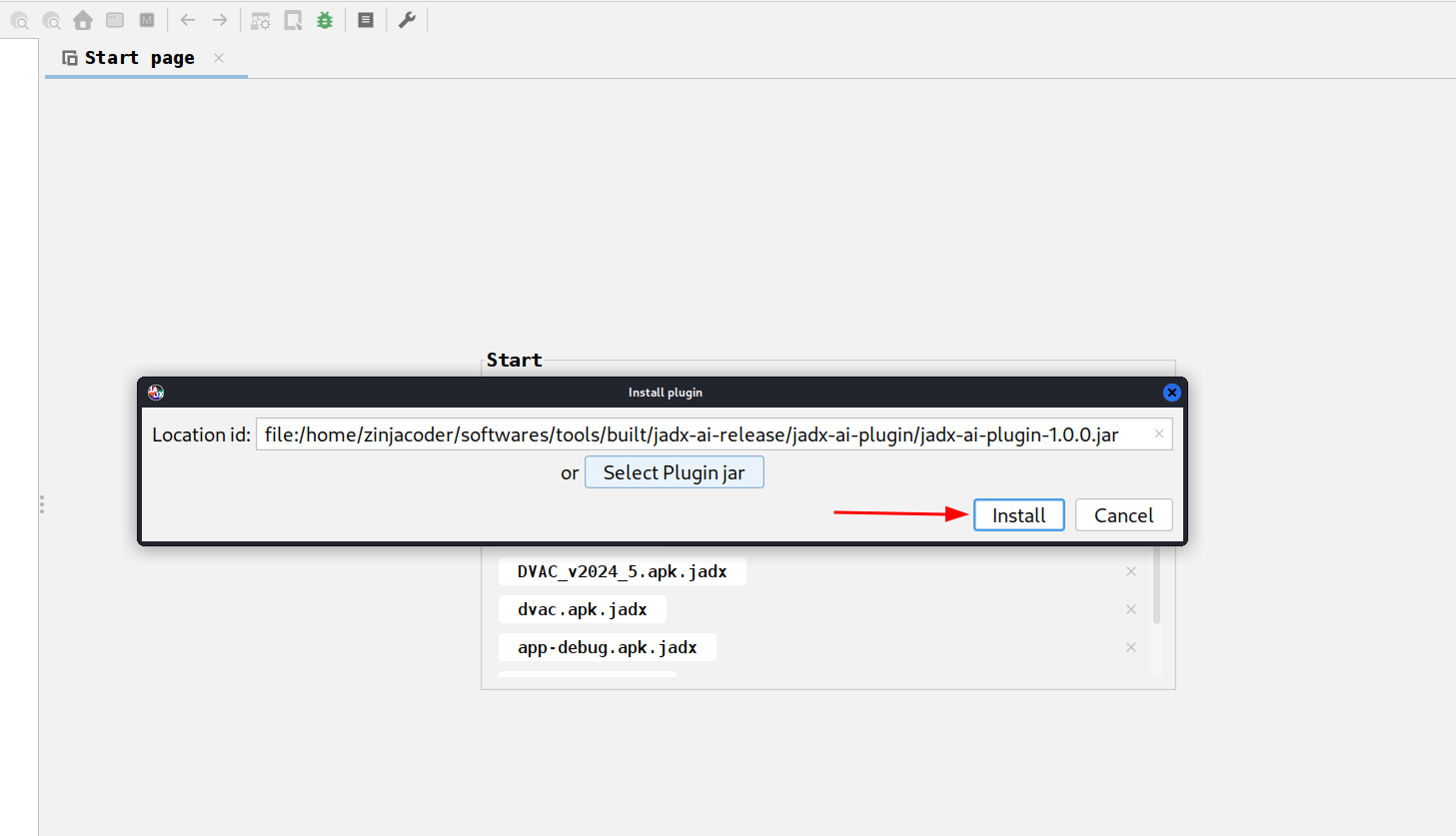

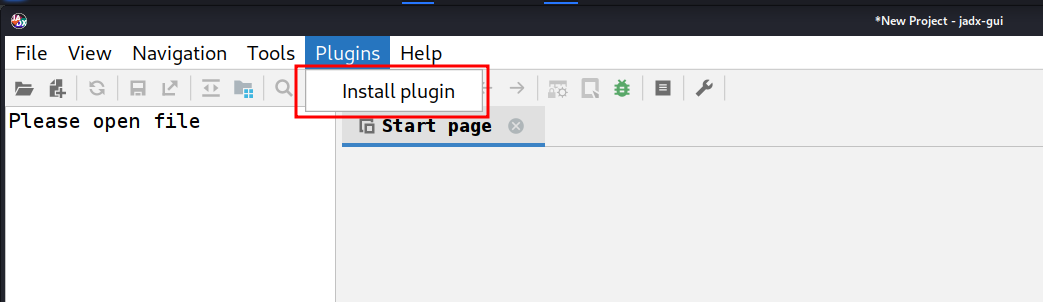

## 3. GUI method, download the .jar file and follow below steps shown in images

# 3. Navigate to jadx-mcp-server directory
cd jadx-mcp-server
4. This project uses uv - https://github.com/astral-sh/uv instead of pip for dependency management.
    ## a. Install uv (if you dont have it yet)
curl -LsSf https://astral.sh/uv/install.sh | sh
    ## b. OPTIONAL, if for any reasons, you get dependecy errors in jadx-mcp-server, Set up the environment
uv venv
source .venv/bin/activate  # or .venv\Scripts\activate on Windows
    ## c. OPTIONAL Install dependencies
uv pip install httpx fastmcp
The setup for jadx-ai-mcp and jadx_mcp_server is done.

🤖 2. Use Claude Desktop

Make sure Claude Desktop is running with MCP enabled.

For instance, I have used following for Kali Linux: https://github.com/aaddrick/claude-desktop-debian

Configure and add MCP server to LLM file:

nano ~/.config/Claude/claude_desktop_config.json

For:

• Windows: %APPDATA%\Claude\claude_desktop_config.json
• macOS: ~/Library/Application Support/Claude/claude_desktop_config.json

And following content in it:

{
    "mcpServers": {
        "jadx-mcp-server": {
            "command": "///uv",
            "args": [
                "--directory",
                "jadx-mcp-server/",
                "run",
                "jadx_mcp_server.py"
            ]
        }
    }
}

Replace:

• path/to/uv with the actual path to your uv executable
• path/to/jadx-mcp-server with the absolute path to where you cloned this

repository

Then, navigate code and interact via real-time code review prompts using the built-in integration.

OR

or you can install the jadx_mcp_server directly as executable directly using below command:

uv tool install git+https://github.com/zinja-coder/jadx-mcp-server

and then you can just provide jadx_mcp_server in command section of mcp configuration.

3. Use Cherry Studio

If you want to configure the MCP tool in Cherry Studio, you can refer to the following configuration.

• Type: stdio
• command: uv
• argument:

--directory
path/to/jadx-mcp-server
run
jadx_mcp_server.py

• path/to/jadx-mcp-server with the absolute path to where you cloned this

repository

4. Using LMStudio

You can also use JADX AI MCP Server with LM Studio by configuring it's mcp.json file. Here's the video guide.

https://github.com/user-attachments/assets/b4a6b280-5aa9-4e76-ac72-a0abec73b809

5. Running in HTTP Stream Mode

You can also use Jadx in HTTP Stream Mode using --http option with jadx_mcp_server.py as shown in following:

uv run jadx_mcp_server.py --http
OR
uv run jadx_mcp_server.py --http --port 9999

Advanced CLI Options — Understanding the Flags

There are two separate connections and each has its own host/port:

┌─────────────┐    --host / --port     ┌──────────────────┐   --jadx-host / --jadx-port   ┌──────────────────┐
│  LLM Client │ ◄──────────────────►   │  jadx-mcp-server │ ──────────────────────────►   │  JADX-GUI Plugin │
│  (Claude,   │   Where the MCP server │                  │   Where the MCP server looks  │  (jadx-ai-mcp)   │
│   Codex..)  │   LISTENS for clients  │                  │   for the JADX plugin         │                  │
└─────────────┘                        └──────────────────┘                               └──────────────────┘

| Flag | Default | Controls | |------|---------|----------| | --http | off | Use HTTP transport instead of stdio | | --host | 127.0.0.1 | Where the MCP server listens (bind address for LLM clients) | | --port | 8651 | Which port the MCP server listens on | | --jadx-host | 127.0.0.1 | Where to find the JADX plugin (the target JADX-GUI machine) | | --jadx-port | 8650 | Which port the JADX plugin is on |

Usage Examples

Scenario 1 — Everything on the same machine (most common):

# Default: MCP server on localhost:8651, connects to JADX plugin on localhost:8650
uv run jadx_mcp_server.py --http

Scenario 2 — Docker container or WSL (MCP server accessible from host network):

# MCP server listens on ALL interfaces so the host can reach it
JADX plugin is still on the same machine
uv run jadx_mcp_server.py --http --host 0.0.0.0

Scenario 3 — JADX-GUI running on a different machine (e.g., remote VM):

# MCP server runs locally, but connects to JADX plugin on a remote machine
uv run jadx_mcp_server.py --http --jadx-host 192.168.1.100

Scenario 4 — Full remote setup (everything on different machines):

# MCP server listens on all interfaces on port 9999
JADX plugin is on a different machine at 192.168.1.100:8652
uv run jadx_mcp_server.py --http --host 0.0.0.0 --port 9999 --jadx-host 192.168.1.100 --jadx-port 8652

[!CAUTION]

### ⚠️ Security Warning — Remote Binding

> When using --host 0.0.0.0 (or any non-localhost address), the MCP server binds to all network interfaces over plain HTTP with no authentication. This means:

> - Anyone on the network can connect and invoke all MCP tools

- There is no TLS encryption — traffic can be intercepted

- An attacker can use the server to read decompiled code, rename classes/methods, and access debug info

> Mitigations:

- Only bind to 0.0.0.0 on trusted, isolated networks (e.g., Docker bridge, local VM)

- Use a firewall to restrict access to the MCP port

- Consider an SSH tunnel instead: ssh -L 8651:127.0.0.1:8651 remote-host

Stdio Mode Compatibility

[!NOTE]

When running in stdio mode (the default, without --http), all human-readable output (banner, health check) is written to stderr to keep stdout reserved for the MCP JSON-RPC stream. This ensures compatibility with Codex, Claude Desktop, and other stdio-based MCP clients.

6. Custom port and host configuration for JADX AI MCP Plugin

1. Configure Port: Configure the port on which the JADX AI MCP Plugin will listen on. 2. Default Port: Revert back the changes and listen on default port. 3. Restart Server: Force restart the JADX AI MCP Plugin server. 4. Server Status: Check the status of JADX AI MCP Plugin server.

To connect with JADX AI MCP Plugin running on custom port, the --jadx-port option will be used as shown in following:

uv run jadx_mcp_server.py --jadx-port 8652

If the JADX AI MCP Plugin is running on a different machine (e.g., JADX on a remote VM, MCP server on your local host), use the --jadx-host option:

# Connect to JADX plugin on a remote host
uv run jadx_mcp_server.py --jadx-host 192.168.1.100 --jadx-port 8650

CLI Reference — Understanding the Flags

There are two separate connections and each has its own host/port:

┌─────────────┐    --host / --port     ┌──────────────────┐   --jadx-host / --jadx-port   ┌──────────────────┐
│  LLM Client │ ◄──────────────────►   │  jadx-mcp-server │ ──────────────────────────►   │  JADX-GUI Plugin │
│  (Claude,   │   Where the MCP server │                  │   Where the MCP server looks  │  (jadx-ai-mcp)   │
│   Codex..)  │   LISTENS for clients  │                  │   for the JADX plugin         │                  │
└─────────────┘                        └──────────────────┘                               └──────────────────┘

| Flag | Default | Controls | |------|---------|----------| | --http | off | Use HTTP transport instead of stdio | | --host | 127.0.0.1 | Where the MCP server listens (bind address for LLM clients) | | --port | 8651 | Which port the MCP server listens on | | --jadx-host | 127.0.0.1 | Where to find the JADX plugin (the target JADX-GUI machine) | | --jadx-port | 8650 | Which port the JADX plugin is on |

Usage Examples

Scenario 1 — Everything on the same machine (most common):

# Default: MCP server on localhost:8651, connects to JADX plugin on localhost:8650
uv run jadx_mcp_server.py --http

Scenario 2 — Docker container or WSL (MCP server accessible from host network):

# MCP server listens on ALL interfaces so the host can reach it
JADX plugin is still on the same machine
uv run jadx_mcp_server.py --http --host 0.0.0.0

Scenario 3 — JADX-GUI running on a different machine (e.g., remote VM):

# MCP server runs locally, but connects to JADX plugin on a remote machine
uv run jadx_mcp_server.py --http --jadx-host 192.168.1.100

Scenario 4 — Full remote setup (everything on different machines):

# MCP server listens on all interfaces on port 9999
JADX plugin is on a different machine at 192.168.1.100:8652
uv run jadx_mcp_server.py --http --host 0.0.0.0 --port 9999 --jadx-host 192.168.1.100 --jadx-port 8652

The MCP Configuration for custom jadx port will be as follows for claude:

``` { "mcpServers": { "jadx-mcp-server": { "command": "/path/to/uv", "args": [ "--directory", "/path/to/jadx-mcp-server/", "run", "jadx_mcp_se
